Alpha Reference Balanced XLR Interconnect Cables Pair

Description

Made with Furutech DAS 4.1 cable, our Douglas Connection Alpha Reference Balanced XLR Interconnect Cables Pair are designed with High End Audio enthusiasts in mind.  When you want the very best balanced XLR Interconnect cable for your high end application, choose our Douglas Connection Alpha Reference Balanced XLR Interconnect Cables Pair.
BASE PRICE IS PER PAIR of 3 ft. CABLES with Furutech CF-602 F NCF and CF-601 M NCF connectors.  Please choose the length cable you need, and the prices will adjust accordingly.  If you need a length longer than 15 ft. please contact us.

Furutech just released the cable we have been waiting for to complete our Alpha Reference Cables line up.  With the release of the Furutech DAS-4.1 OCC/DUCC Balanced Audio Cable, we have Power Cables, Speaker Cables, and now Analog Interconnect Cables made from this wonderful OCC/DUCC wire.

The Douglas Connection Alpha Reference Balanced XLR Interconnect cables pair are designed with the High End Audio enthusiasts in mind. These cables incorporate Furutech DAS-4.1 OCC/DUCC Balanced Audio Cable, and Furutech CF-601 NCF and CF-602 NCF High End Performance XLR Connectors.  Both the cable and the connectors are treated with the α(Alpha) process. Furutech’s α(Alpha) process consists of  Two-Stage Cryogenic and Demagnetization treatment.  ALL metallic parts used in Furutech products go through the Alpha Process treatment to keep all connectors, conductors, and metal parts in a perfect stress-free, stable and highly conductive state.

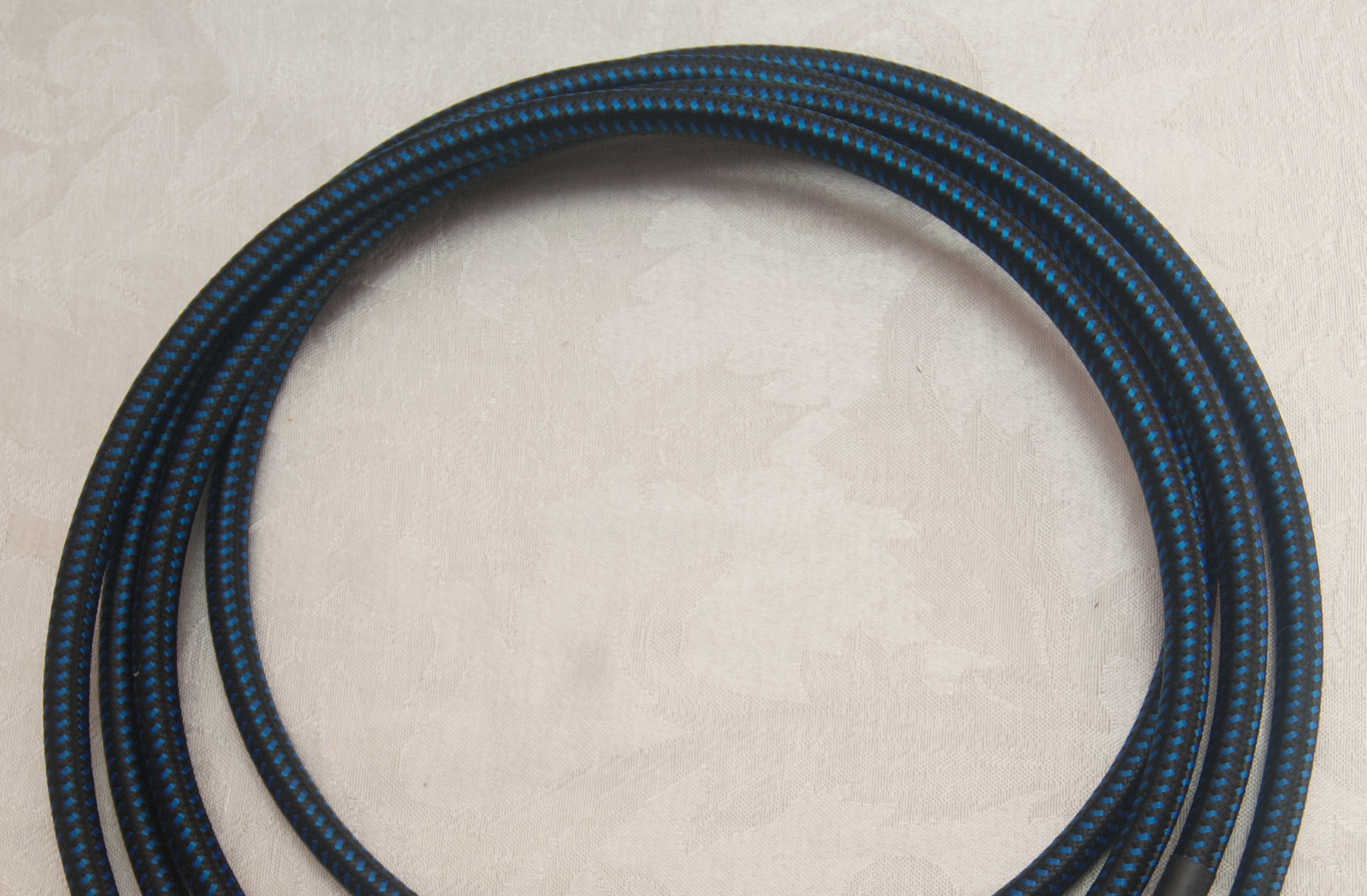

Furutech DAS-4.1 OCC/DUCC Balanced Audio Cable SPECIFICATIONS

Conductor Material Alpha-OCC + α-DUCC (7N Class)
Construction (pcs／mm）
Inner – 59 / 0.13 α-OCC (Right rotate)
Middle – 29 / 0.13 α-DUCC (Left rotate)
Outer – 36 / 0.13 α-DUCC (Right rotate)
Diameter （mm）1.67 Approx.
Size 15AWG / 1.65 Sq.mm

Insulation Material
Audio Grade PP (Polypropylene, Red for”+”、White for “-“)
Mom. Thickness （mm）0.47 Approx.
Diameter （mm）2.6 Approx.
Twisting Method
2 Cores Twisted Together
Fillers Polyester yarn
Barrier Layer
Non-Woven Fabric wrap
Shield Method
Cu-Foil wrap + Braided (24×6 / 0.13 α- OCC) + Paper wrap
Inner Sheath
Material Audio Grade Flexible PVC (Black)
Nano-Ceramic / Carbon particle compound
Diameter （mm）7.8 Approx.
Outer Sheath
Material
Audio Grade Flexible PVC (Dark purple)
Nom. Thickness（mm）0.7 Approx.
Diameter （mm）9.2 Approx.
Outer Sleeve
Material
PP yarn stranded braid(Black/Blue)
Overall Diameter （mm）
10.0 Approx

Furutech CF-601 M NCF Specifications:
Dimensions: ø18.6mm X 64.6mm overall length approx.
Net Weight: 46.9g approx.
Nonmagnetic stainless-steel hexagon socket set screws
Conductor wire fixed by set screw or soldering
Pin centers are injected with heat resistant NCF Liquid Crystal Polymer Resin
Rhodium-plated α (Alpha) Pure copper one-piece construction conductor pin injected with heat resistant NCF Liquid Crystal Polymer Resin.
Heat resistant NCF Liquid Crystal Polymer Resin
Rhodium-plated α (Alpha) Pure copper one-piece construction conductor pin

Furutech CF-602 F NCF Female High End Performance XLR Connector  Features:
• Rhodium-plated α (Alpha) Pure copper one-piece construction conductors.
• Nylon, fiberglass, nano-sized crystalline piezo ceramic particles, carbon powder and Furutech special “NCF” anti-resonance damping material main body combine heat resistant NCF Liquid Crystal Polymer Resin. NCF delivers improvements in the depth and focus of the sound stage, harmonics and tonal balance. Low frequencies are cleaner, with a greater sense of definition made possible by a lowered noise floor.
• Special resonance damping composite release button – formed with stainless steel powder and vibration resistant metal powder.
• Chrome-plated brass stamped housing.
• NCF material damping clips
• Housing: Multilayer hybrid NCF carbon housing composed of an outer hard clear coat over with another layer of Hybrid NCF Silver plated 3k carbon fiber on a nonmagnetic stainless-steel Housing. The best of damping and insulation materials improve frequency extension and tonal balance.
• Conductor wire fixed by set screw or soldering.
• Specified for cable diameters max. 10.0mm.
• Accommodates: 13AWG (2.62 sq.mm) max. stranded wire / 12AWG (3.3 sq.mm) max solid core wire. Wire diameter 2.4mm max.

Furutech CF-602 F NCF Female High End Performance XLR Connector Specifications:
Dimensions: ø18.6mm X 70.85mm overall length approx.
Net Weight: 58.2g approx.
