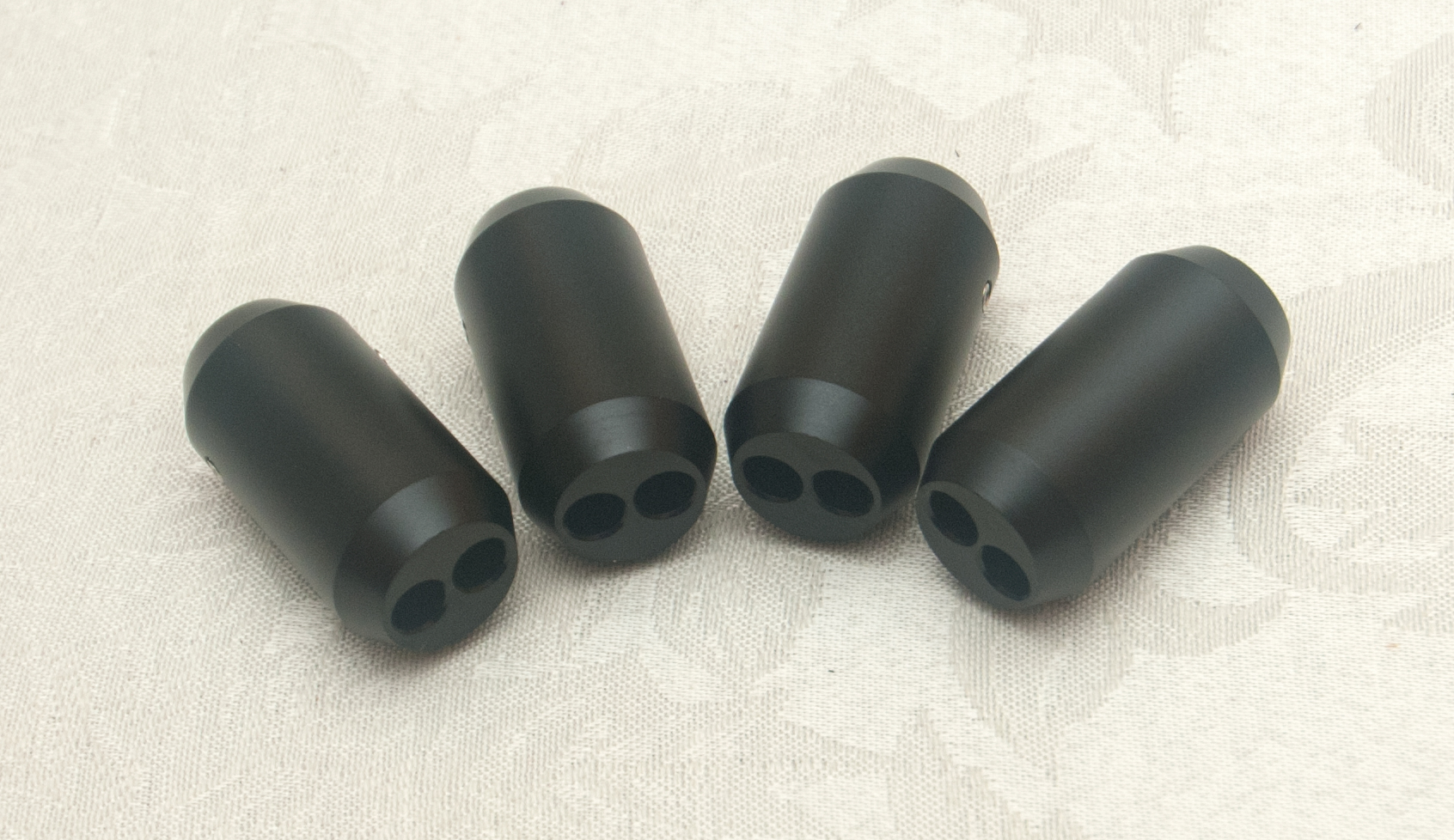

Speaker Cable Splitter 16mm in Two 7mm out

Description

Planning a DIY speaker Cable Project?  Speaker Cable Splitter 16mm in Two 7mm out provide you a perfect way to transition a two conductor speaker cable into individual conductors without the use of cable boots or just using heat shrink over the transition.  Using cable splitters will give your finished cables a very professional look.  These splitters will fit up to the largest cable we sell except for Furutech DSS-4.1.  Priced per set of 4.  You’ll need one set if you are building a pair of speaker cables.

These Speaker Cable Splitters are designed for an entry cable diameter of 16mm max including braided sleeve over the cable jacket and two 7mm out for heat shrink covered individual conductors. The typical use of this cable splitter would be for 10 or 12AWG speaker cables but can be used for most any sized cable.

These Speaker Cable Splitters are constructed of black anodized aluminum. Unlike heat shrinkable breakout cable boots, the Speaker Cable Splitter 16mm in Two 7mm out can easily be reused if a mistake is made in the cable assembly or if you change the speaker cable configuration.

Cable Splitter Features/Specifications:
•  Speaker Cable Splitter – 1 in 2 Out
•  Anodized Aluminum Construction
•  Cable Hold Down Set Screws

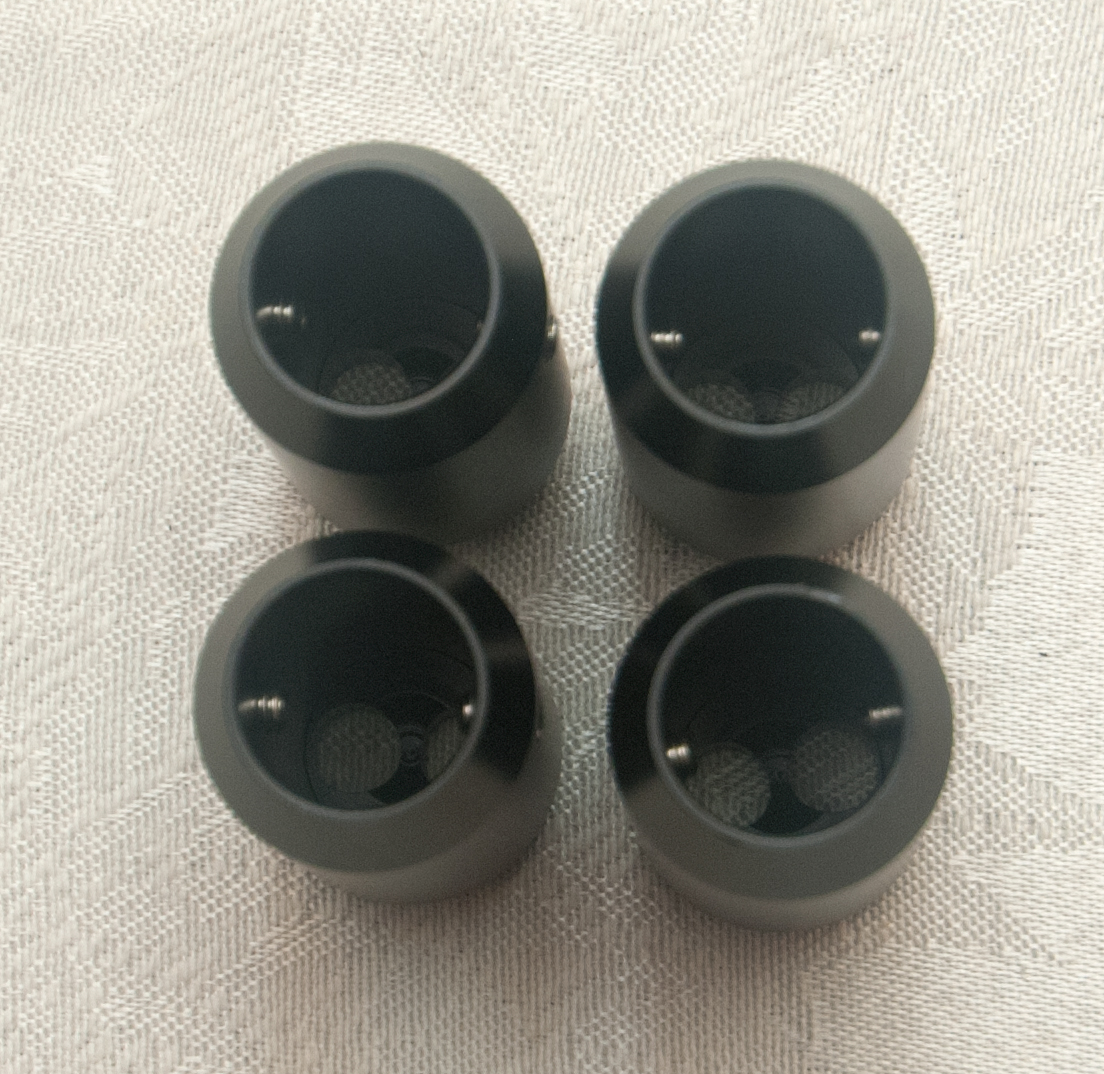

•  Main Body ID: 0.63″ (16mm)

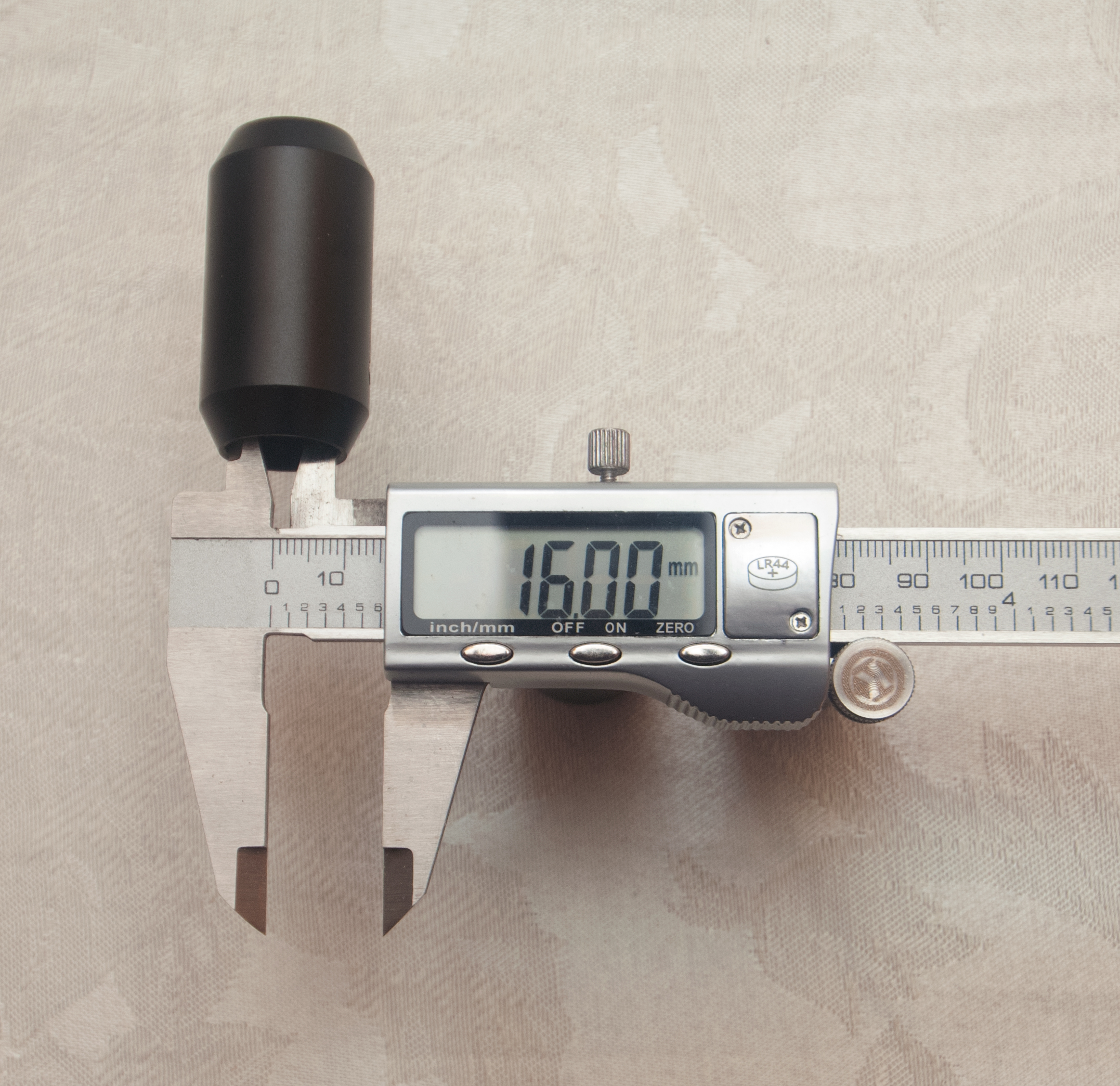

•  Cable Entry ID:0.630″ (16mm)

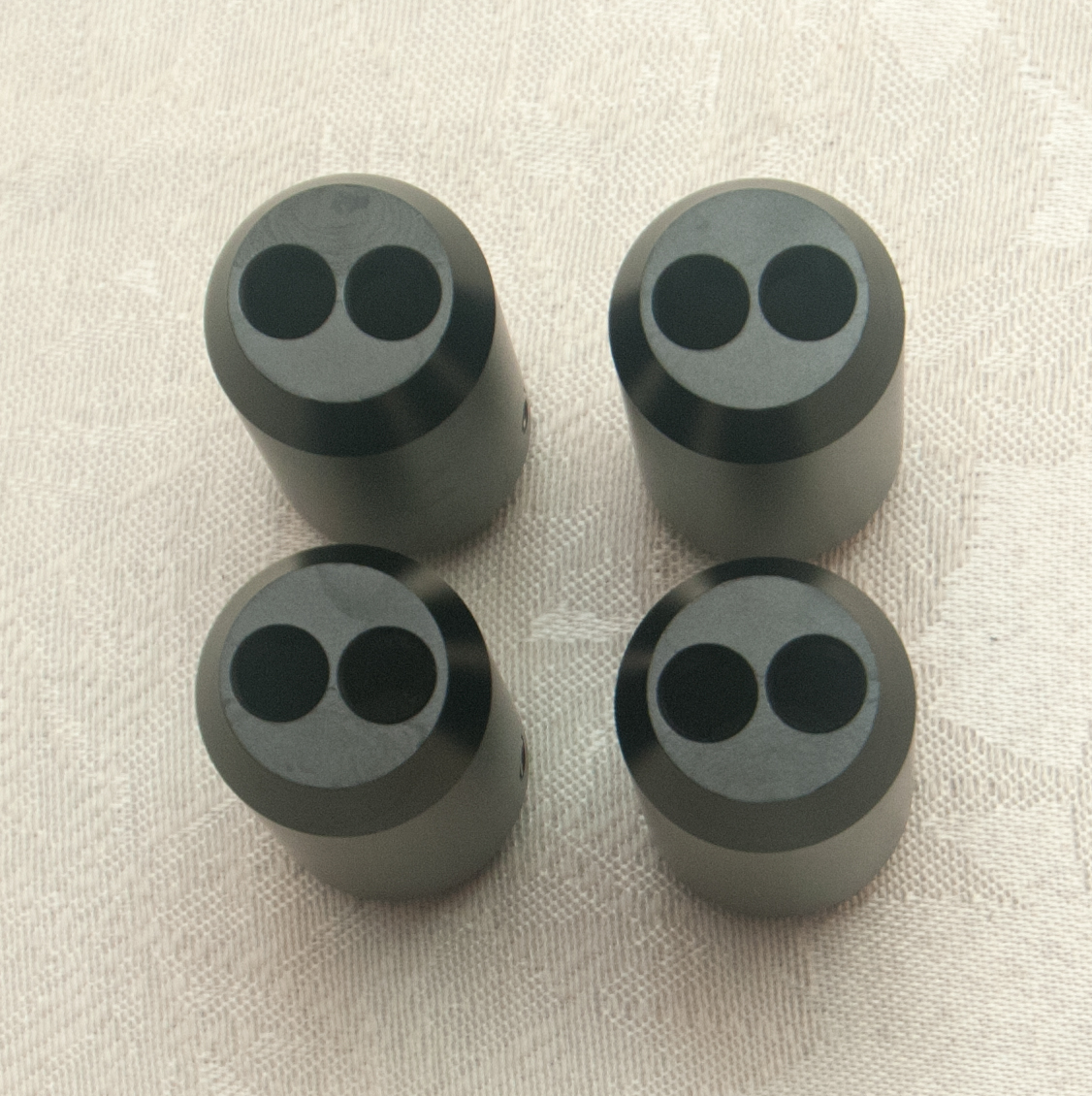

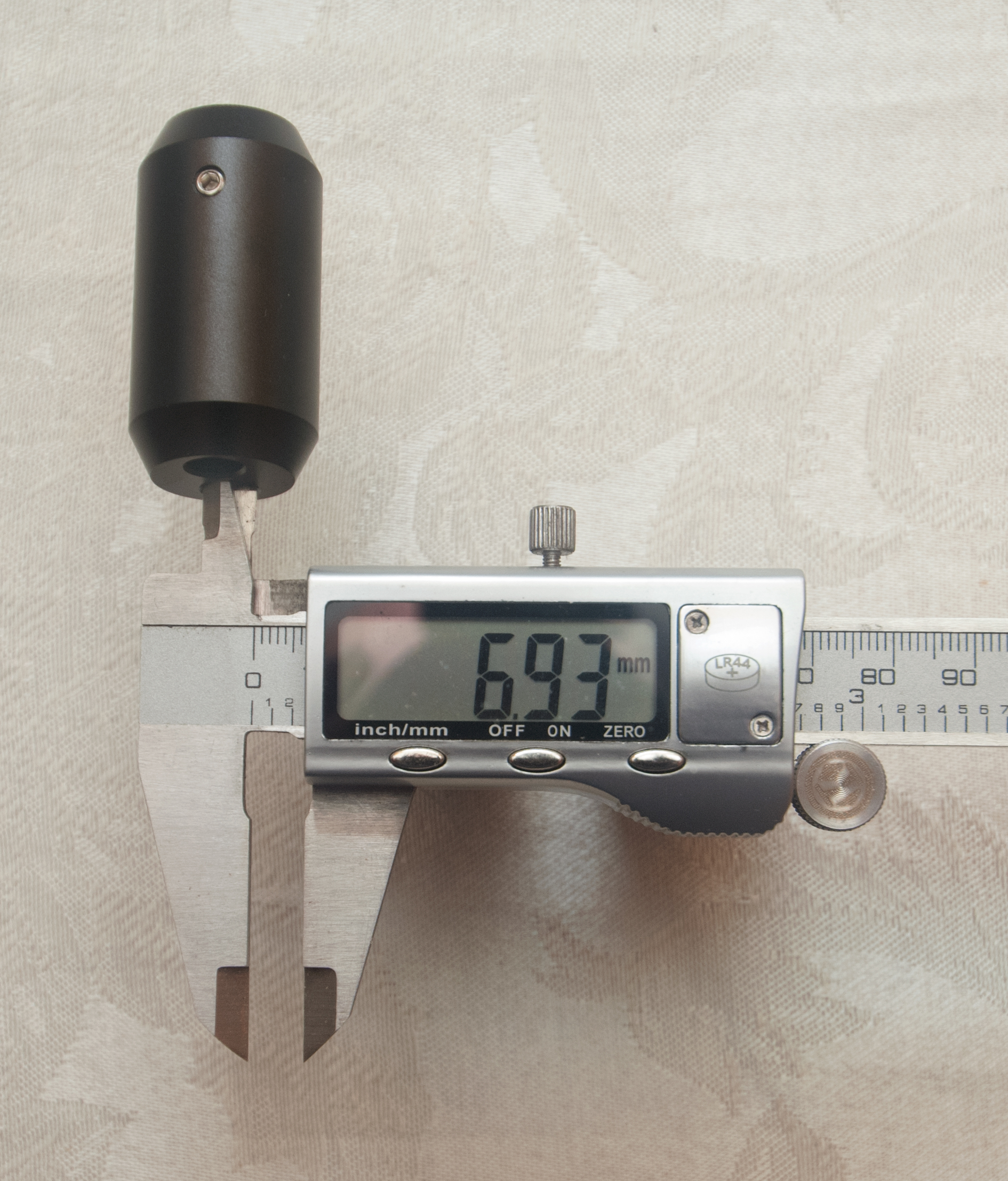

•  Conductor Exit: 2 Hole – 0.275″, (7mm)

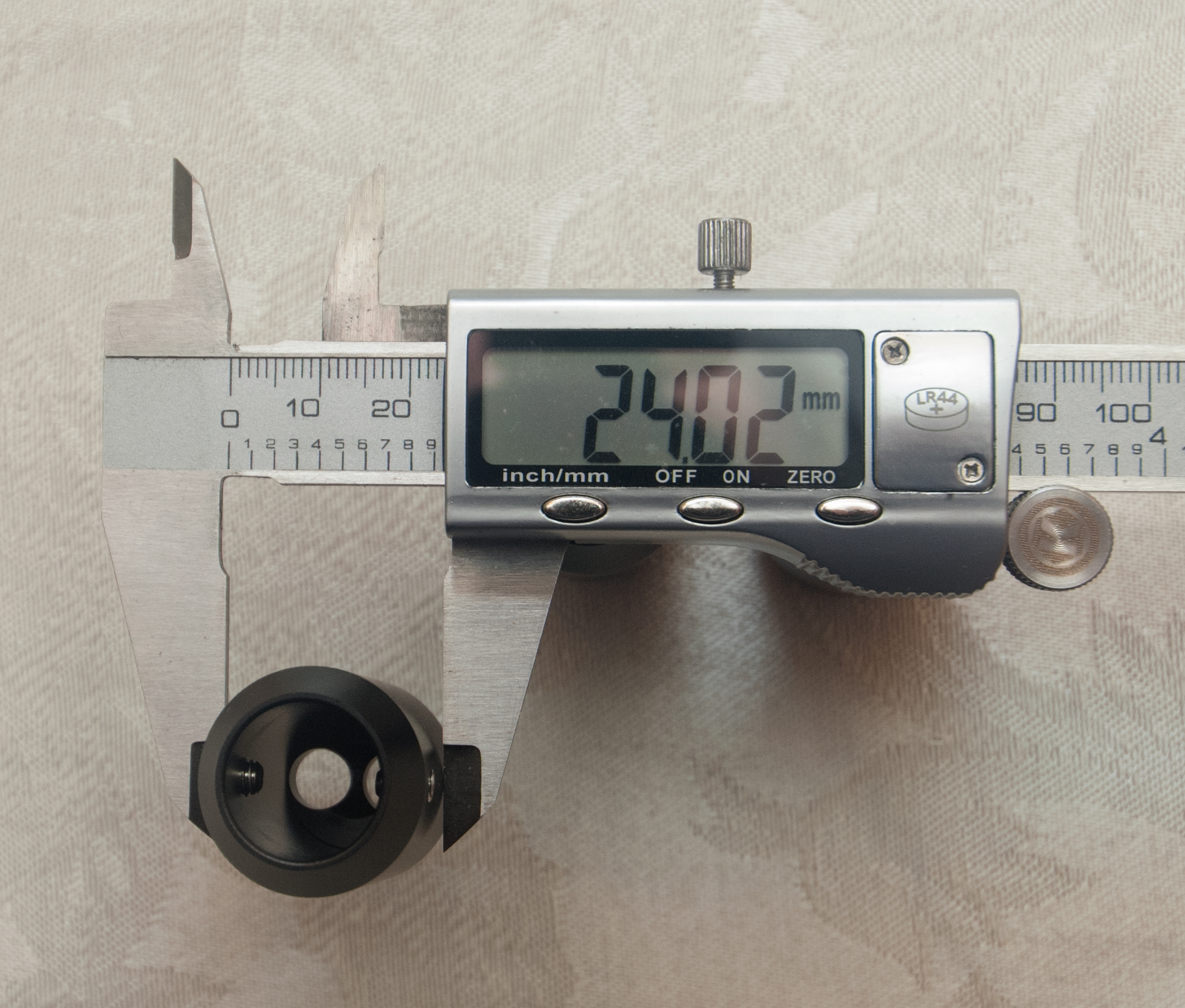

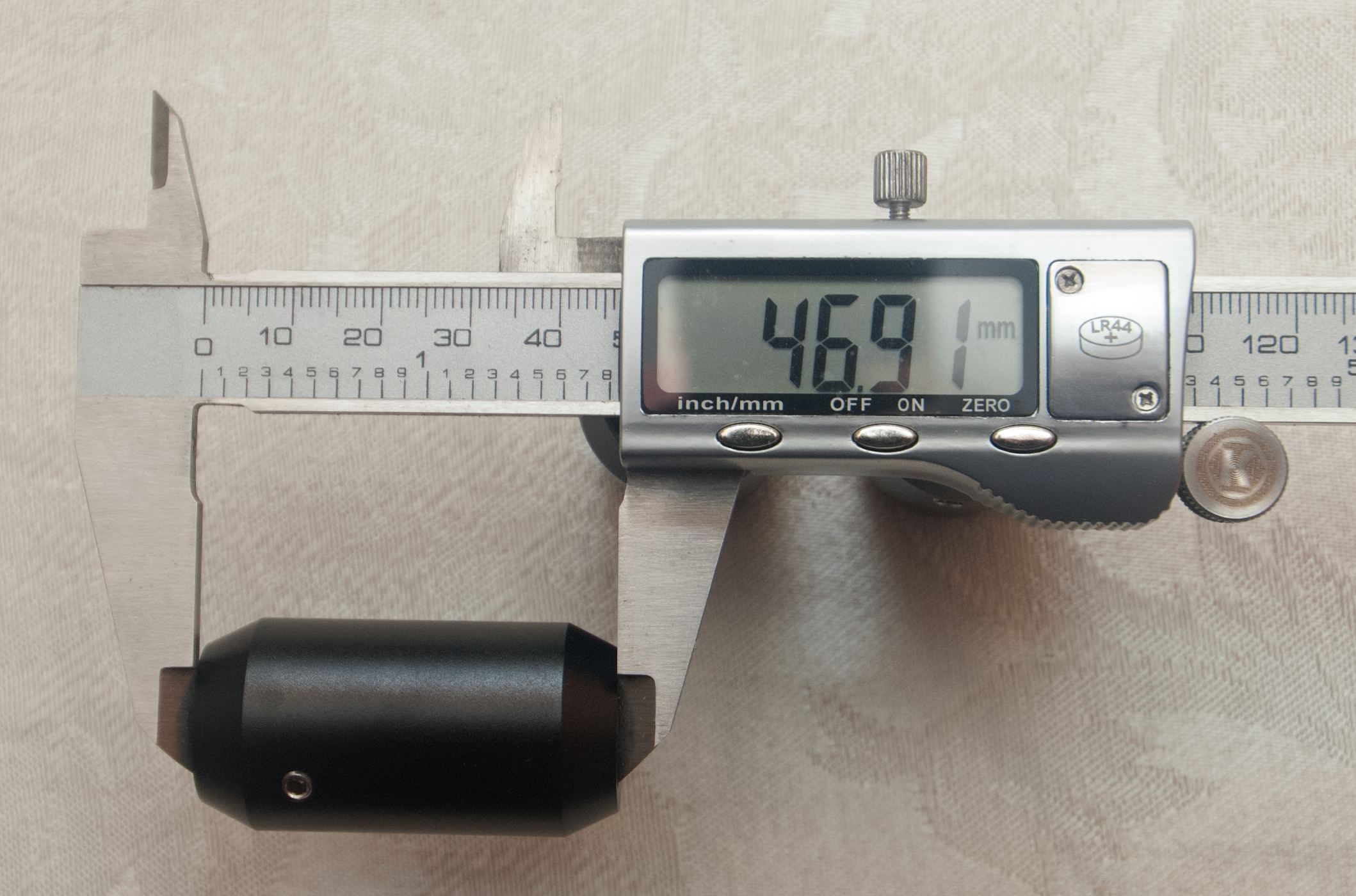

•  Overall Dimensions: 1.65″ (42mm) L x 0.945″ (24mm) Dia.
•  Weight set of 4: 0.4lb

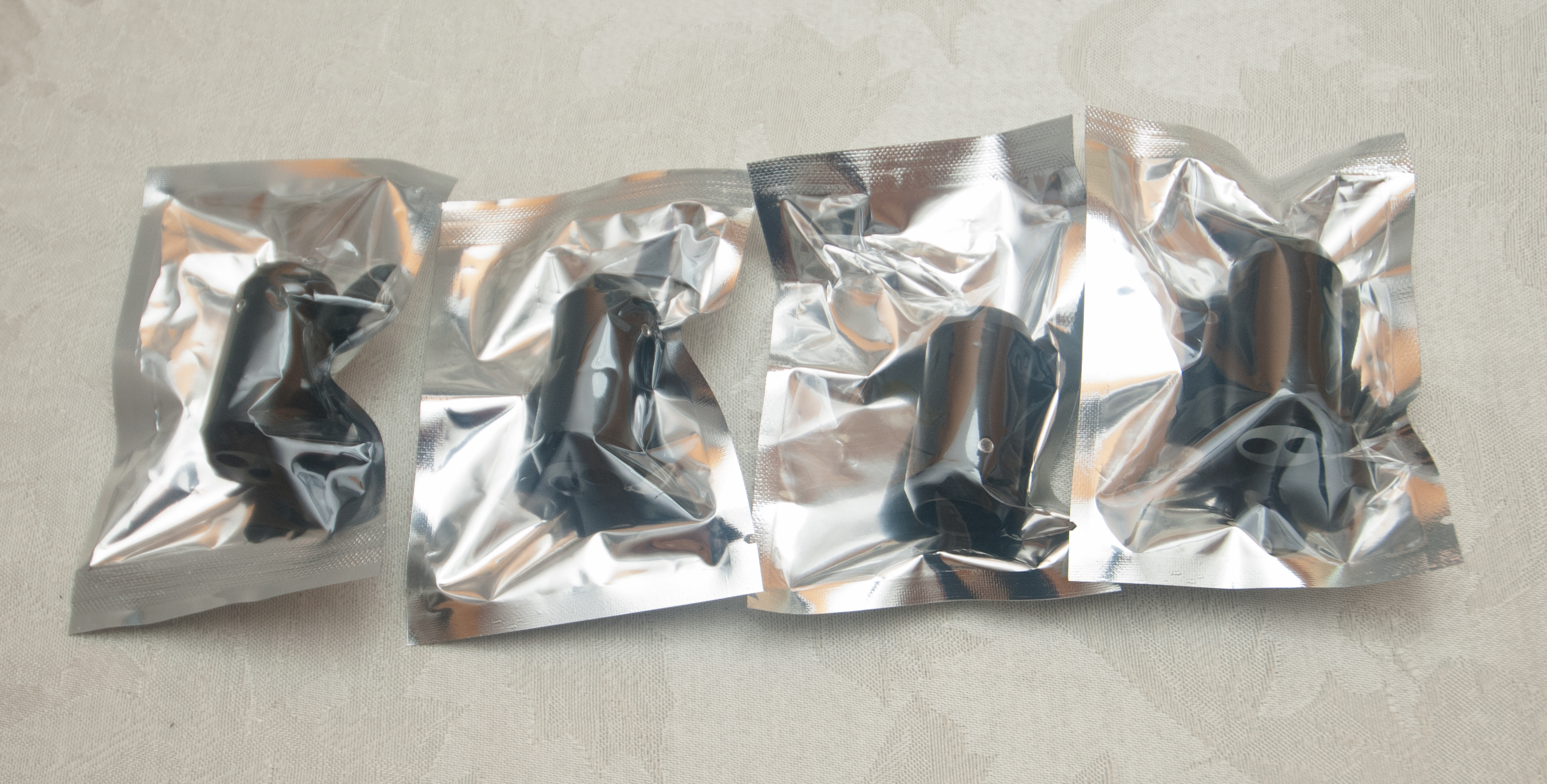

•  Includes: 4 Splitters with two 5mm Set Screws for each
